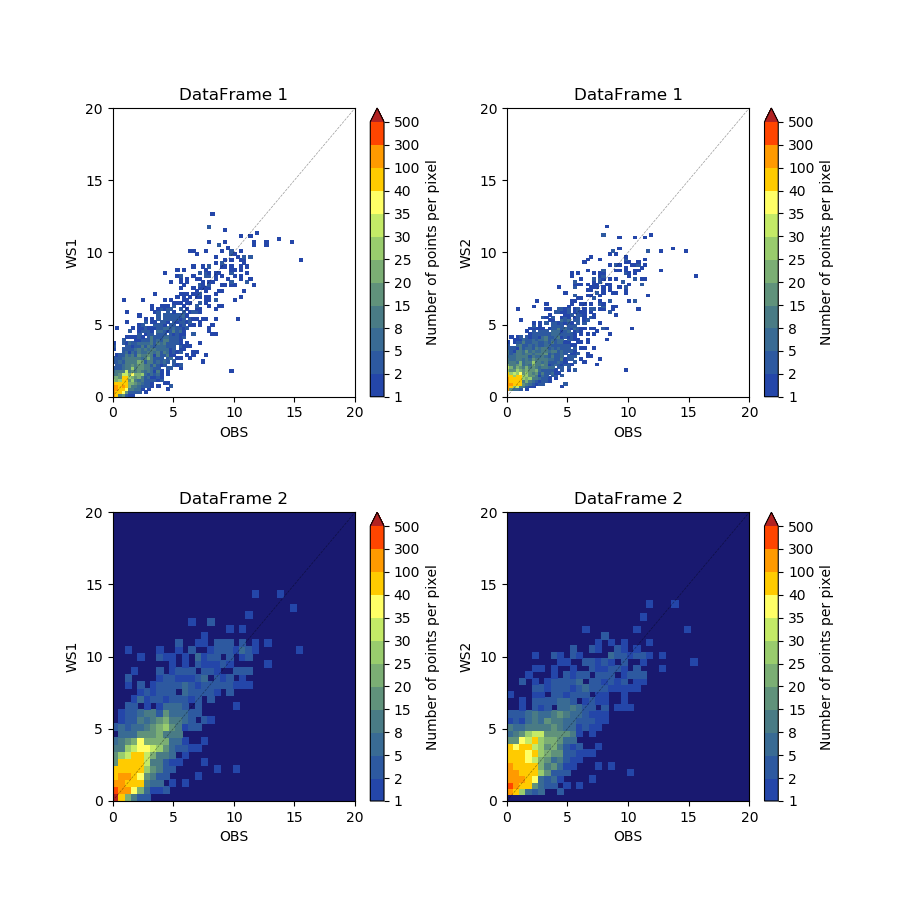

Hist2d for frqency scatter plot¶
Plotting point distribution by frequecy template
Data format: csv
Data source: Self test
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib import colors
from cwbplot import cwb_colorbar as cwbcbar
df1 = pd.read_csv("example_1.csv")
df2 = pd.read_csv("example_2.csv")
fig,axs = plt.subplots(2,2,figsize=(9,9))
plt.subplots_adjust(hspace=0.4,wspace=0.3)
freq = cwbcbar.freq()
overcolor = "firebrick"
limvalue = 20
tickspos = np.arange(0,limvalue+1,5)
cnt = 0
for picx in axs.flatten():
if cnt % 2 == 0:
col = 1
if cnt < 2:
sct = picx.hist2d(df1["OBS"], df1.iloc[:, col],bins = (60,60), **freq)
picx.set_title("DataFrame 1")
col += 1
else:
picx.set_facecolor('midnightblue')
sct = picx.hist2d(df2["OBS"], df2.iloc[:, col],bins = (30,30), **freq)
picx.set_title("DataFrame 2")
col += 1
cnt += 1
sct[3].cmap.set_under("None")
sct[3].cmap.set_over(overcolor)
cbar = plt.colorbar(sct[3],ax=picx,extend="max",ticks=freq["norm"].boundaries)
cbar.ax.minorticks_off()
cbar.set_label("Number of points per pixel")
picx.set_xticks(tickspos)
picx.set_yticks(tickspos)
picx.set_xlim(0,limvalue)
picx.set_ylim(0,limvalue)
picx.plot([0,limvalue],[0,limvalue],'k--',linewidth=0.5,alpha=0.4)
picx.set_xlabel("OBS")
picx.set_ylabel("WS{:d}".format(col-1))
