此範例處理數值預報模式-區域預報模式(WRF-3公里) M-A0064-???¶
Data Source: CWB opendata
已下載grib2檔案
from cwbplot import opdata
gb2data = opdata.read_grib("filename.grb2")
#會回傳pygrib物件
畫個圖
import matplotlib.pyplot as plt
import cwbplot.cwb_colorbar as cwbcbar
from cwbplot import opdata, projinfo
grib2info = opdata.read_grib("M-A0064-22101600-012.grb2")
allvar = grib2info.select()[:]
lats, lons = allvar[0].latlons()
analDate = allvar[0].analDate.strftime("%y%m%d%H")
fcst = str(allvar[0].forecastTime)
valDate = allvar[0].validDate.strftime("%y%m%d%H")
temp2m = allvar[62]["values"] - 273.15
rh2m = allvar[65]["values"]
fig,axs = plt.subplots(1,2,figsize=(24,10))
tempcbar = cwbcbar.surfT()
rhcbar = cwbcbar.rh(style="rhcc")
for cnt, ax in enumerate(axs.flatten()):
if cnt == 0:
proj = projinfo.wrfd(lons,lats, domain="d02", res="f", projection="cyl", ax=ax)
ctf = proj.contourf(lons, lats, temp2m, **tempcbar, latlon=True)
cbar = plt.colorbar(ctf, orientation='horizontal', ax = ax,pad=0.03)
cbar.set_label("($^\circ$C)")
ax.set_title(f"{analDate} {fcst} {valDate}\nTemperature at 2m")
else:
proj = projinfo.wrfd(lons,lats, domain="d02", res="f", projection="cyl", \
cut=[116, 126, 19, 30], ax=ax)
ctf = proj.contourf(lons, lats, rh2m, **rhcbar, latlon=True)
cbar = plt.colorbar(ctf, ax = ax, fraction=0.05)
cbar.set_label("%")
ax.set_title(f"{analDate} {fcst} {valDate}\nRelative Humidity at 2m")
proj.drawmeridians(np.arange(100,141,5), color='dimgray', labels=[0, 0, 0, 1], yoffset = 0 )
proj.drawparallels(np.arange(10,51,5), color='dimgray', labels=[1, 0, 0, 0], xoffset = 0 )
proj.drawcoastlines()
plt.savefig("M-A0064.png", dpi=250, format="png", bbox_inches='tight')

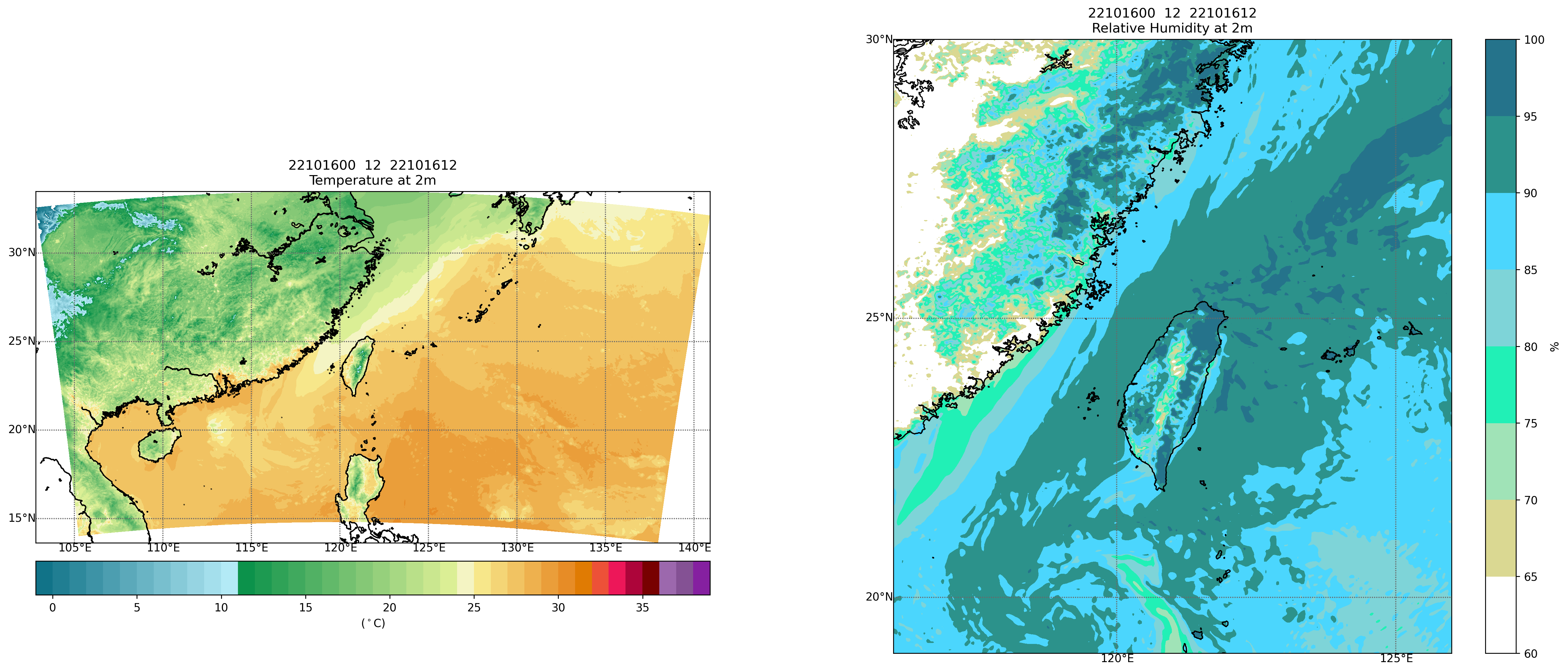

圖如下
