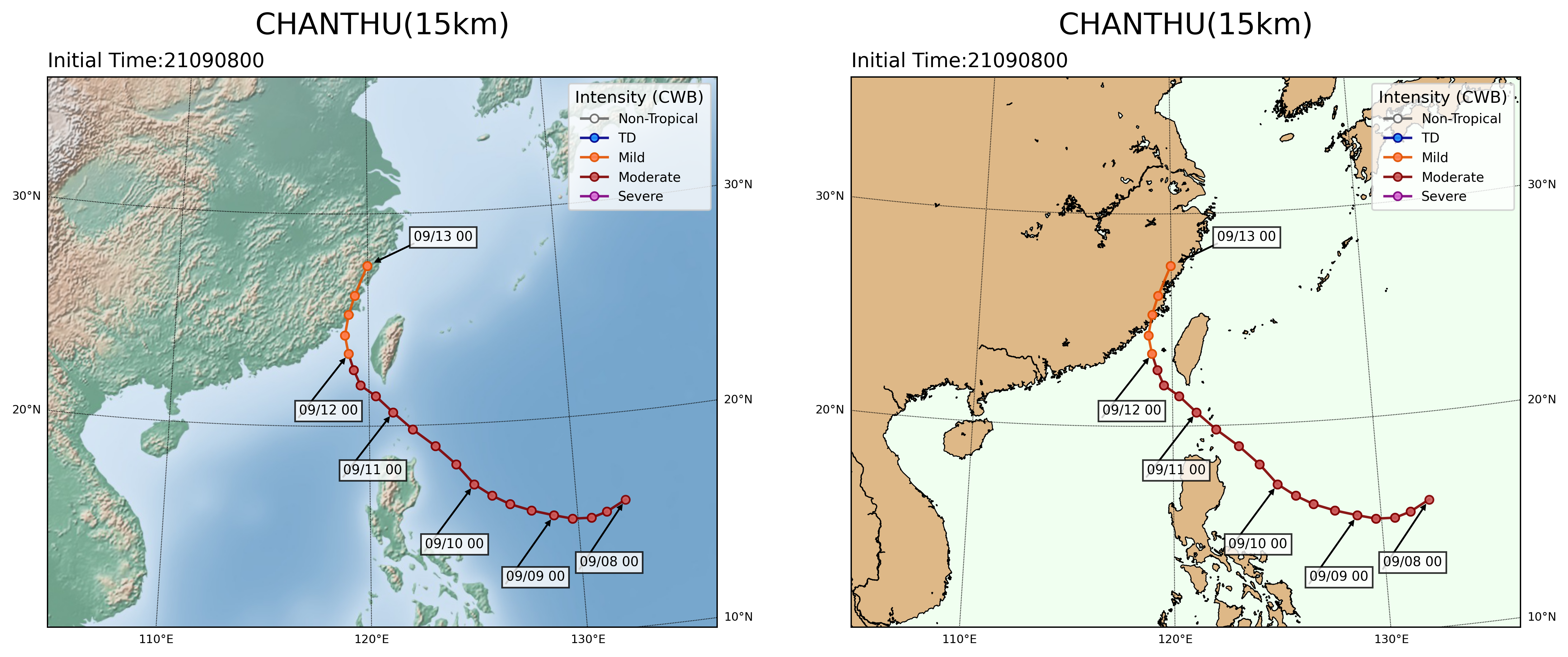

Typhoon Track

Plotting typhoon track. The intensity of typhoon are referred CWB guidence.

Data format: csv

Data source: CWB npd website

---

import matplotlib.pyplot as plt
import pandas as pd
from mpl_toolkits.basemap import Basemap
from datetime import datetime, timedelta
from cwbplot import tytrack

def draw(proj, dfpath, initime, axpic):
     odtg = [ (initime + timedelta(hours=int(taus))).strftime("%m/%d %H") for taus in dfpath["tau"] ]
     points = dfpath.shape[0]
     for cnt in range(points):
         lineinfo, legendinfo = tytrack.filled(path['Vmax(m/s)'][cnt])
         if cnt != points - 1:
             x1, x2 = dfpath['lon'][cnt],dfpath['lon'][cnt+1]
             y1, y2 = dfpath['lat'][cnt], dfpath['lat'][cnt+1]
         else:
             x1, x2 = dfpath['lon'][cnt], dfpath['lon'][cnt]
             y1, y2 = dfpath['lat'][cnt], dfpath['lat'][cnt]
         proj.plot([x1, x2], [y1, y2], **lineinfo, ax = axpic, latlon = True)
     textposlon, textposlat= bm(list(dfpath["lon"][:]-2.5),list(dfpath["lat"][:]-3))
     pathlon, pathlat = bm(list(dfpath["lon"][:]),list(dfpath["lat"][:]))

     for i in range(0,21,4):    #
         if i == 20:
             textposlon[i], textposlat[i]= bm(dfpath["lon"][i]+2.5, dfpath["lat"][i]+1)
             pathlon[i], pathlat[i] = bm(dfpath["lon"][i], dfpath["lat"][i])

         axpic.text(textposlon[i],textposlat[i],odtg[i],
                    ha='left',va='bottom',fontsize=8,
                    bbox=dict(boxstyle='square',
                        facecolor='white',
                        alpha=0.8,
                        capstyle='round')
                      )

         disx = pathlon[i] - textposlon[i]
         disy = pathlat[i]- textposlat[i]
         rr = 1.15
         if i == 20:
             rr = 1.35
         axpic.arrow(textposlon[i],textposlat[i],disx/rr, disy/rr, head_width=20000, head_length=20000, fc='k', ec='k')
     axpic.set_title("CHANTHU(15km)\n",loc='center',fontsize=18)
     axpic.set_title("Initial Time:21090800",loc='left')
     axpic.legend(*legendinfo, loc="upper right",title="Intensity (CWB)",borderpad=0.5,title_fontsize=10,fontsize=8)


 path = pd.read_csv("tytrack.csv")
 init = datetime.strptime("21090800","%y%m%d%H")
 figs, axss = plt.subplots(1,2,figsize=(16,8),dpi=350)
 bm=Basemap(projection='lcc',lat_1=10,lat_2=40,lat_0=27.06553,lon_0=118.5691,
              resolution='h',llcrnrlon=105, llcrnrlat=10, urcrnrlon=140, urcrnrlat=35)

 for pics in range(axss.shape[0]):
     bm.drawparallels(np.arange(-90,90,10),  labels=[1,1,0,0], fontsize=7, linewidth=0.5,ax=axss[pics])
     bm.drawmeridians(np.arange(0,180,10), labels=[0,0,0,1], fontsize=7,  linewidth=0.5,ax=axss[pics])
     if pics == 0:
         bm.shadedrelief(ax=axss[pics])
     else:
         axss[pics].set_facecolor("honeydew")
         bm.fillcontinents(color = "burlywood")
         bm.drawcoastlines(linewidth=0.6)
     draw(bm, path, init, axss[pics])

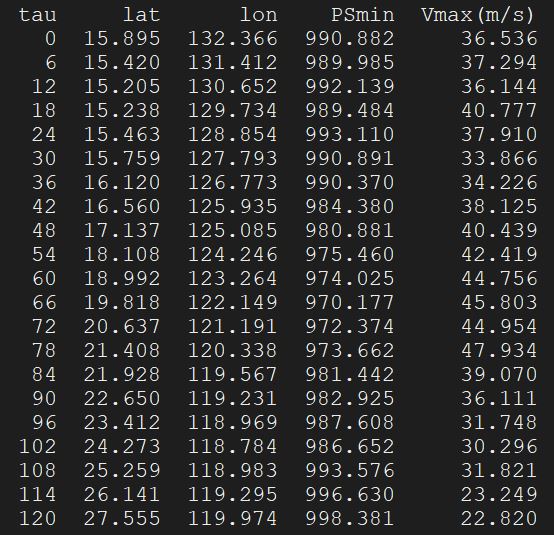

Track data as follows:
