此範例處理局屬氣象站-現在天氣觀測報告 <br> O-A0003-001

Data Source: CWB opendata

---

已下載xml或json檔案

from cwbplot import opdata

dfxml = opdata.read_xml("O-A0003-001.xml")
#會回傳pandas dataframe物件

dfjson = opdata.read_json("O-A0003-001.json")
#會回傳pandas dataframe物件

print(list(dfjson))
#header 如 ['time', 'stationId', 'locationName', 'lon', 'lat', 'lon_wgs84', 'lat_wgs84', 'ELEV', 'WDIR', 'WDSD', 'TEMP', 'HUMD', 'PRES', 'H_24R', 'H_FX', 'H_XD', 'H_FXT', 'D_TX', 'D_TXT', 'D_TN', 'D_TNT', 'CITY', 'CITY_SN', 'TOWN', 'TOWN_SN']

若想要全自動化，直接使用api

from cwbplot import opdata
dfjson = opdata.json_api("O-A0003-001","/home/staffid/cwbopdata/readme.api")
#會回傳pandas dataframe物件
#readme.api的內容為您於氣象局開放資料申請的api，我的類似CWB-????????-????-????-????-????????????
#?代表一個位數，可能是數字或英文字母

print(list(dfjson))
#header 如 ['time', 'lat', 'lon', 'locationName', 'stationId', 'ELEV', 'WDIR', 'WDSD', 'TEMP', 'HUMD', 'PRES', 'H_24R', 'H_FX', 'H_XD', 'H_FXT', 'D_TX', 'D_TXT', 'D_TN', 'D_TNT', 'CITY', 'CITY_SN', 'TOWN', 'TOWN_SN']

畫個圖

import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import numpy as np
from cwbplot import cwb_colorbar, opdata

df = opdata.read_xml("O-A0003-001.xml")
lat = df["lat"].astype(float).values
lon = df["lon"].astype(float).values
tempature = df["TEMP"].astype(float).values
wdir = df["WDIR"].astype(float).values
wdir[wdir < 0.0 ] = np.nan
wspd = df["WDSD"].astype(float).values
#換算為u及v
rad = 4.0 * np.arctan(1)/180.
u = -wspd * np.sin(rad * wdir)
v = -wspd * np.cos(rad * wdir)
obstime = df["time"]

plt.figure(figsize=(16,12))
ax = plt.axes(projection=ccrs.Mercator())
ax.add_feature(cfeature.COASTLINE.with_scale('10m'))
surfT = cwb_colorbar.surfT()
sct = ax.scatter(lon, lat, c=tempature, cmap = surfT["cmap"], norm=surfT["norm"], transform=ccrs.PlateCarree())
ax.barbs(lon, lat, u, v, transform=ccrs.PlateCarree())
ax.set_extent([117.5, 122.5, 21.5, 26])
cbar = plt.colorbar(sct,ax=ax)
cbar.set_label("Temperature ($^\circ$C)",size=14)
plt.title(obstime[0],fontsize=18)
plt.savefig("O-A0003-001.png", format='png', bbox_inches='tight', dpi=250)

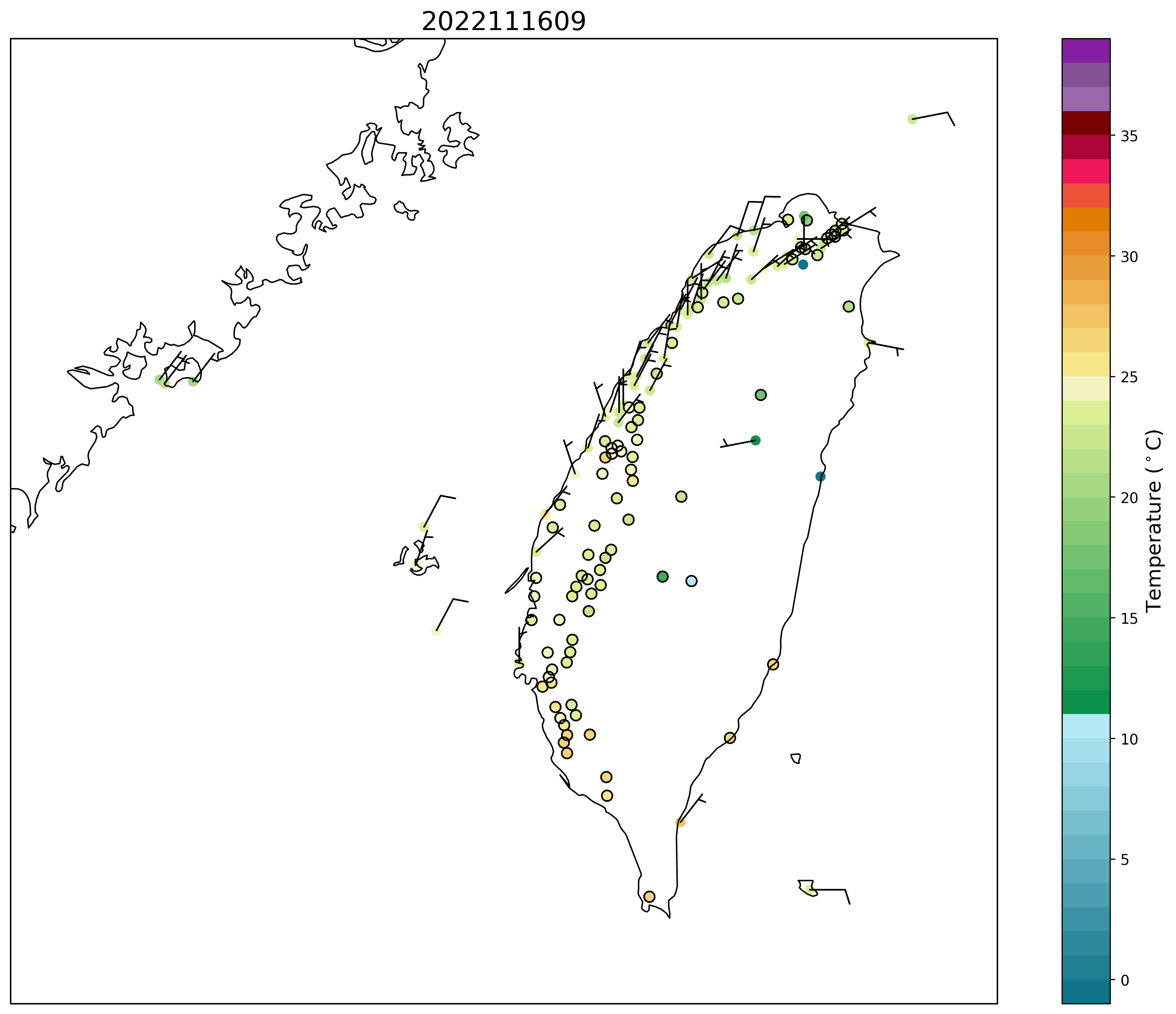

圖如下
