Getting started¶

Installation¶

>>> pip install cwbplot

Required Dependencies¶

Python 3.6 or later

numpy (1.17.3 or later)

pygrib (2.0.4 or later)

basemap (1.2.1 or later)

requests (2.25.0 or later)

matplotlib (3.3.3 or later)

setuptools (38.0 or later)

Highly Recommended Packages¶

gdal (2.4.1 or later)

Plotting Packages¶

cartopy (0.13 or later)

CWB open data IO¶

example¶

json file

from cwbplot import opdata
out = opdata.read_xml("jsonfile")

api(Only Json)

from cwbplot import opdata
out = opdata.json_api("opend dataid","apipath")

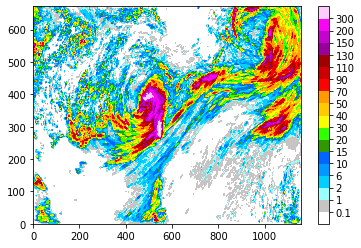

Colorbar¶

example¶

import numpy as np
import cwbplot.cwb_colorbar as cwbcolor #import cwbcolorbar 模組
import matplotlib.pyplot as plt

rainfall = np.load("/home/c052/work/opendata/21080606/rainfall.npy")

t2m = np.load("/home/c052/work/opendata/21080606/t2m.npy")

ygrids, xgrids = rainfall.shape

xx, yy = np.meshgrid(np.linspace(0, xgrids-1, xgrids),np.linspace(0,ygrids-1, ygrids))
raincb = cwbcolor.rain() #使用rain()方法，回傳雨量colorbar的物件
plt.contourf(xx, yy, rainfall, **raincb)

#設定「直」的colorbar跟tick label
cbstr = [ str(i) for i in raincb["levels"][1:-1]]
cbar = plt.colorbar(ticks=raincb["levels"][1:-1])
newticks = cbar.ax.set_yticklabels(cbstr)
